Compound collision shape. More...

Collaboration diagram for Compound:

Data Structures
struct	b3CompoundCapsuleDef
	Definition for a capsule in a compound shape. More...
struct	b3CompoundHullDef
	Definition for a convex hull in a compound shape. More...
struct	b3CompoundMeshDef
	Definition for a triangle mesh in a compound shape. More...
struct	b3CompoundSphereDef
	Definition for a sphere in a compound shape. More...
struct	b3CompoundDef
	Definition for creating a compound shape. More...
struct	b3CompoundData
	The runtime data for a compound shape. More...
struct	b3CompoundCapsule
	A capsule that lives in a compound. More...
struct	b3CompoundHull
	A hull that lives in a compound. More...
struct	b3CompoundMesh
	A mesh with non-uniform scale that lives in a compound. More...
struct	b3CompoundSphere
	A sphere that lives in a compound. More...
struct	b3ChildShape
	Child shape of a compound. More...
union	b3ChildShape.__unnamed0__
	Tagged union. More...

Macros
#define	B3_COMPOUND_VERSION ( 0x830778DB07086EB4ull ^ B3_DYNAMIC_TREE_VERSION ^ B3_MESH_VERSION ^ B3_HULL_VERSION )
	The compound version depends on the tree, mesh, and hull versions.
#define	B3_MAX_COMPOUND_MESH_MATERIALS 4
	Meshes used in compounds have limited space for materials.

Typedefs
typedef bool	b3CompoundQueryFcn(const b3CompoundData compound, int childIndex, void context)
	Callback for compound overlap queries.

Functions
b3ChildShape	b3GetCompoundChild (const b3CompoundData *compound, int childIndex)
	Get a child shape of a compound.
void	b3QueryCompound (const b3CompoundData compound, b3AABB aabb, b3CompoundQueryFcn fcn, void *context)
	Query a compound shape for children that overlap an AABB.
b3CompoundCapsule	b3GetCompoundCapsule (const b3CompoundData *compound, int index)
	Access a child capsule by index.
b3CompoundHull	b3GetCompoundHull (const b3CompoundData *compound, int index)
	Access a child hull by index.
b3CompoundMesh	b3GetCompoundMesh (const b3CompoundData *compound, int index)
	Access a child mesh by index.
b3CompoundSphere	b3GetCompoundSphere (const b3CompoundData *compound, int index)
	Access a child sphere by index.
const b3SurfaceMaterial *	b3GetCompoundMaterials (const b3CompoundData *compound)
	Access the compound material array.
b3CompoundData *	b3CreateCompound (const b3CompoundDef *def)
	Create a compound shape. All input data in the definition is cloned into the resulting compound.
void	b3DestroyCompound (b3CompoundData *compound)
	Destroy a compound shape.
uint8_t *	b3ConvertCompoundToBytes (b3CompoundData *compound)
	If bytes is null then this returns the number of required bytes.
b3CompoundData *	b3ConvertBytesToCompound (uint8_t *bytes, int byteCount)
	Convert bytes to compound.

Detailed Description

Compound collision shape.

Data Structure Documentation

◆ b3CompoundCapsuleDef

struct b3CompoundCapsuleDef

Definition for a capsule in a compound shape.

Collaboration diagram for b3CompoundCapsuleDef:

[legend]

Data Fields
b3Capsule	capsule	Local capsule.
b3SurfaceMaterial	material	Material properties.

◆ b3CompoundHullDef

struct b3CompoundHullDef

Definition for a convex hull in a compound shape.

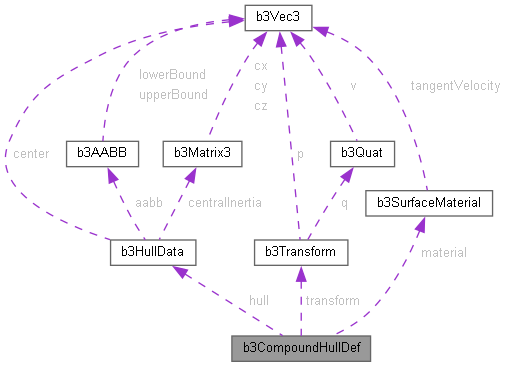

Collaboration diagram for b3CompoundHullDef:

[legend]

Data Fields
const b3HullData *	hull	Shared hull.
b3SurfaceMaterial	material	Material properties.
b3Transform	transform	Transform of the shared hull into compound local space.

◆ b3CompoundMeshDef

struct b3CompoundMeshDef

Definition for a triangle mesh in a compound shape.

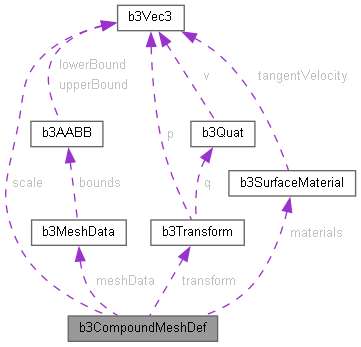

Collaboration diagram for b3CompoundMeshDef:

[legend]

Data Fields
int	materialCount	Number of materials.
const b3SurfaceMaterial *	materials	Material properties. This array must line up with the material indices on the triangles.
const b3MeshData *	meshData	Shared mesh.
b3Vec3	scale	Local space non-uniform mesh scale. May have negative components.
b3Transform	transform	Transform of the shared mesh into compound local space.

◆ b3CompoundSphereDef

struct b3CompoundSphereDef

Definition for a sphere in a compound shape.

Collaboration diagram for b3CompoundSphereDef:

[legend]

Data Fields
b3SurfaceMaterial	material	Material properties.
b3Sphere	sphere	Local sphere.

◆ b3CompoundDef

struct b3CompoundDef

Definition for creating a compound shape.

All this data is fully cloned into the run-time compound shape.

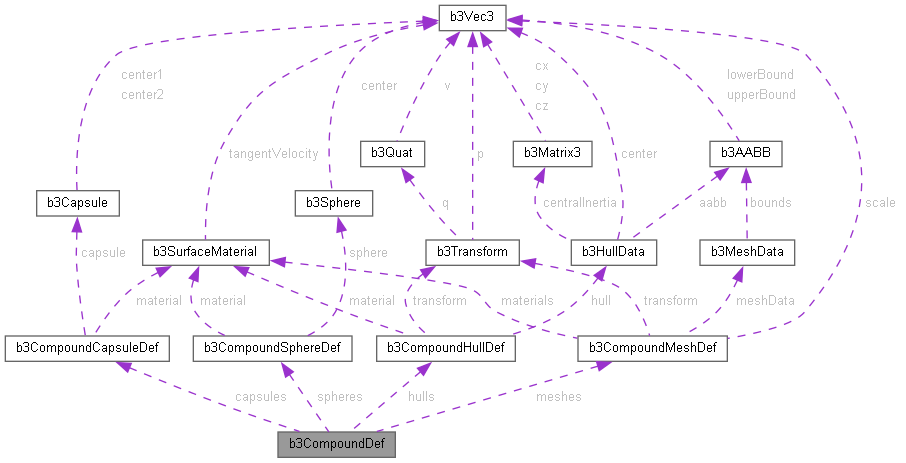

Collaboration diagram for b3CompoundDef:

[legend]

Data Fields
int	capsuleCount	Number of capsules.
b3CompoundCapsuleDef *	capsules	Capsule instances.
int	hullCount	Number of hull instances.
b3CompoundHullDef *	hulls	Hulls instances.
int	meshCount	Number of mesh instances.
b3CompoundMeshDef *	meshes	Mesh instances.
int	sphereCount	Number of spheres.
b3CompoundSphereDef *	spheres	Sphere instances.

◆ b3CompoundData

struct b3CompoundData

The runtime data for a compound shape.

This is a potentially large yet highly optimized data structure. It can contain thousands of child shapes, yet at runtime it populates into the world as a single shape in the runtime broad-phase. This data structure has data living off the end and must be accessed using offsets. Accessors are provided for user relevant data.

Collaboration diagram for b3CompoundData:

[legend]

Data Fields
int	byteCount	The total number of bytes for this compound.
int	capsuleCount	The number of capsules.
int	capsuleOffset	Offset of the capsule array in bytes from the struct address.
int	hullCount	The number of hull instances.
int	hullOffset	Offset of the hull instance array in bytes from the struct address.
int	materialCount	The number of materials.
int	materialOffset	Offset of the material array in bytes from the struct address.
int	meshCount	The number of mesh instances.
int	meshOffset	Offset of the mesh instance array in bytes from the struct address.
int	nodeOffset	Offset of the tree node array in bytes from the struct address.
int	sharedHullCount	The number of unique hulls. Diagnostic.
int	sharedMeshCount	The number of unique meshes. Diagnostic.
int	sphereCount	The number of spheres.
int	sphereOffset	Offset of the sphere array in bytes from the struct address.
b3DynamicTree	tree	Immutable dynamic tree. The tree node pointer must be fixed up using the node offset.
uint64_t	version	The compound version is always first.

◆ b3CompoundCapsule

struct b3CompoundCapsule

A capsule that lives in a compound.

Collaboration diagram for b3CompoundCapsule:

[legend]

Data Fields
b3Capsule	capsule	Local capsule.
int	materialIndex	Index to a shared material.

◆ b3CompoundHull

struct b3CompoundHull

A hull that lives in a compound.

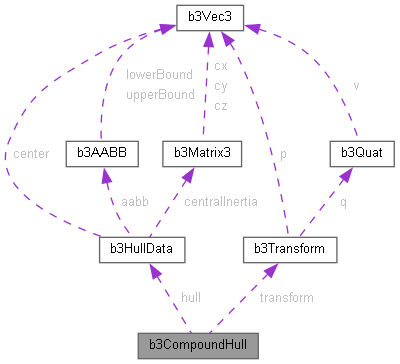

Collaboration diagram for b3CompoundHull:

[legend]

Data Fields
const b3HullData *	hull	Pointer to the unique shared hull.
int	materialIndex	Index to a shared material.
b3Transform	transform	The transform of this hull instance.

◆ b3CompoundMesh

struct b3CompoundMesh

A mesh with non-uniform scale that lives in a compound.

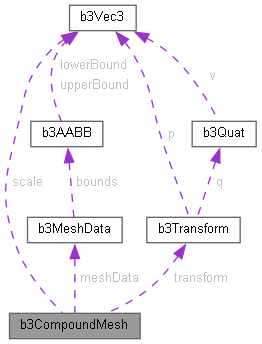

Collaboration diagram for b3CompoundMesh:

[legend]

Data Fields
int	materialIndices[B3_MAX_COMPOUND_MESH_MATERIALS]	This is used to access the surface material from b3GetCompoundMaterials. Requires an extra level of indirection. The triangle material index is clamped to B3_MAX_COMPOUND_MESH_MATERIALS. materialIndex = materialIndices[triangle->materialIndex]
const b3MeshData *	meshData	Pointer to the unique shared mesh.
b3Vec3	scale	Non-uniform scale of this mesh instance.
b3Transform	transform	The transform of this mesh instance.

◆ b3CompoundSphere

struct b3CompoundSphere

A sphere that lives in a compound.

Collaboration diagram for b3CompoundSphere:

[legend]

Data Fields
int	materialIndex	Index to a shared material.
b3Sphere	sphere	Local sphere.

◆ b3ChildShape.unnamed0

union b3ChildShape.__unnamed0__

Tagged union.

Data Fields
b3Capsule	capsule	Capsule.
const b3HullData *	hull	Hull.
b3Mesh	mesh	Mesh.
b3Sphere	sphere	Sphere.

Macro Definition Documentation

◆ B3_MAX_COMPOUND_MESH_MATERIALS

#define B3_MAX_COMPOUND_MESH_MATERIALS 4

Meshes used in compounds have limited space for materials.

If you have a mesh with many materials, you can use it outside of the compound.

Function Documentation

◆ b3ConvertBytesToCompound()

b3CompoundData * b3ConvertBytesToCompound	(	uint8_t *	bytes,
		int	byteCount )

Convert bytes to compound.

This does not clone. The bytes must remain in scope while the compound is used. This is done to improve run-time performance and allow for instancing. The bytes are mutated to fixup pointers.

◆ b3ConvertCompoundToBytes()

uint8_t * b3ConvertCompoundToBytes ( b3CompoundData * compound )

If bytes is null then this returns the number of required bytes.

This clones all the data into the bytes buffer. This is expected to run offline or asynchronously. This mutates the compound to nullify pointers, leaving the compound in an unusable state.
